From a PC Window
1:Displays Einstein Drive Directories
2:Sends and Gets files from Einstein Disks
3:Deletes and Renames files on an Einstein Floppy
4:Formats an Einstein drive
5:Creates an Einstein disc image from an Einstein floppy (40 track 10 sectors per track) only.
6:Downloads and executes an Einstein program
WinEinTrans
A Windows PC/Einstein Serial Link
Program
Created By Ste Ruddy
|
Open the archive. It will hold four files. WinEinTrans.exe the windows GUI version can be run by just double clicking its icon. This means it can be extracted to and run from removal media. The extracted four files are just too big to fit on a 1.44 m. floppy but WinEinTrans.exe can be put on a floppy by its self and run. The "EinTrans.chm" windows help file with screen shots will show how to get EINTRANS.COM the Einstein part of the transfer program installed onto an Einstein floppy. A boot floppy for the Einstein will be needed with COPY.COM, and either XBAS.COM or BBCBASIC.COM files on the disk. |
INSTALLING WinEinTrans ON THE PC
USING EINTRANS
|

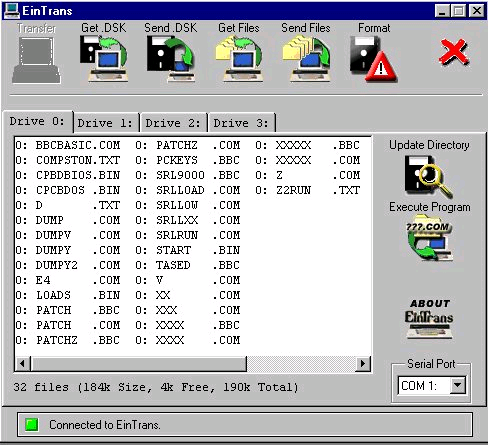

The "EinTrans.chm" windows help file will be needed more for the command line version of Eintrans.exe than the Windows version. The command line version has additional features that are more technical in nature i.e. the "eintrans drive" command which will show the parameter tables of floppies in the Einstein drives. The GUI version is more or less self explicit except for that of right clicking the mouse pointer on files displayed in the Einy directory to get a drop down menu. Check the right serial port is used bottom right hand corner. |
END
The wiring configuration View and Download
DTR 4
TD 3
RD 2
CD 1
8 CTS
7 RTS
6 DSR
VIEW LOOKING INTO SOCKET
2 -
